AS Series 8 Gang (AS-R80) RGB Slim Switch Panel, Toggle/ Momentary/ Pulsed Mode Supported(One-Sided Outlet)
AS Series 8 Gang (AS-R80) RGB Slim Switch Panel, Toggle/ Momentary/ Pulsed Mode Supported(One-Sided Outlet)
Couldn't load pickup availability

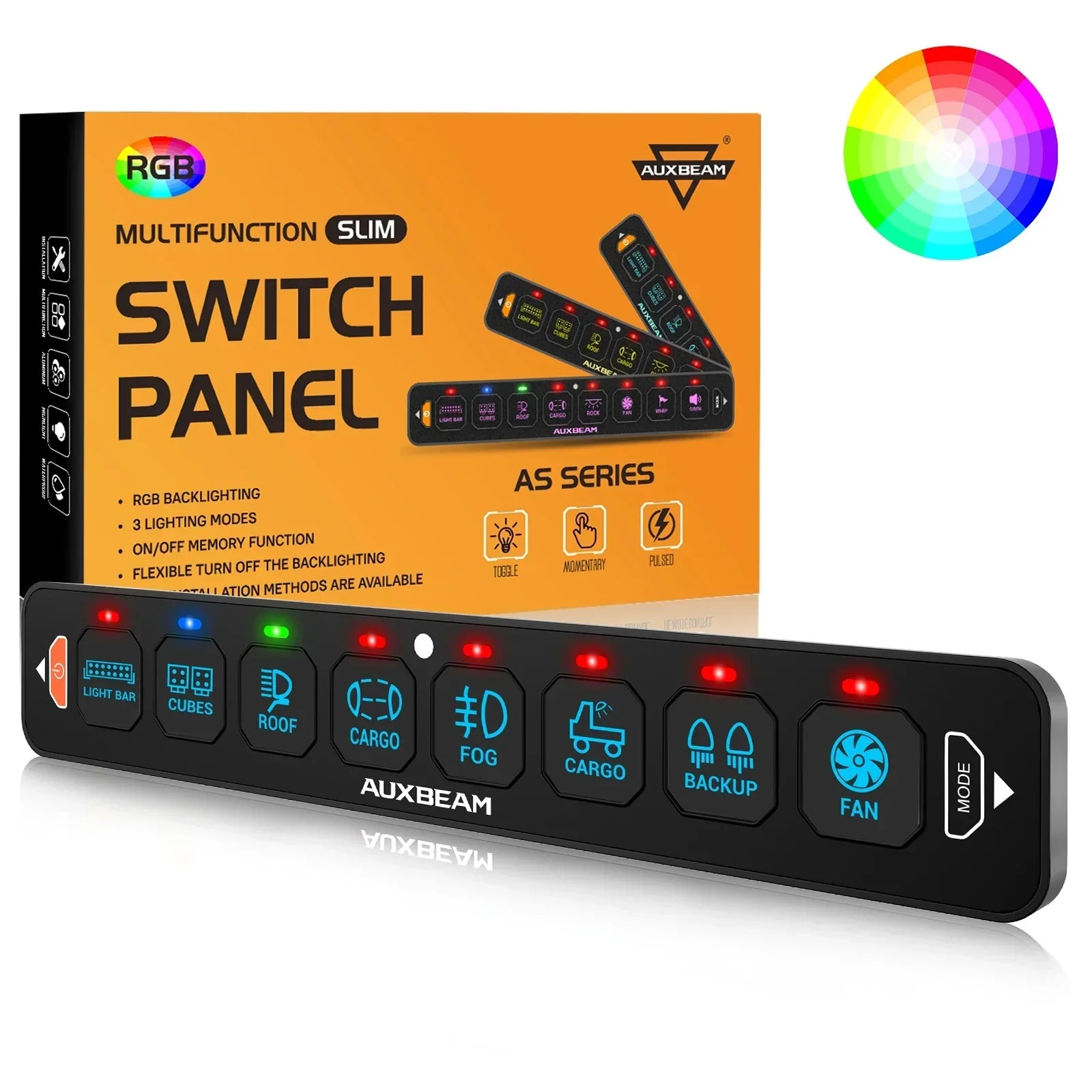

8 Gang Slim Switch Panel
★ Upgraded Functions:
✔ RGB backlight - Unlimited color options match dash lighting and vehicle
✔ 3 Mode setting - Toggle/ Momentary/ Pulsed
✔Manual backlit off - Turn off the backlight when it's daytime or when it's not necessary
✔ DIY switch panel - Use the provided 60pcs switch labels to indicate what’s connected to that switch.
✔ 10FT wiring harness - Extend from 9FT to 10FT
✔ Waterproof cover - Protect the switch panel from rain & snow weather or water

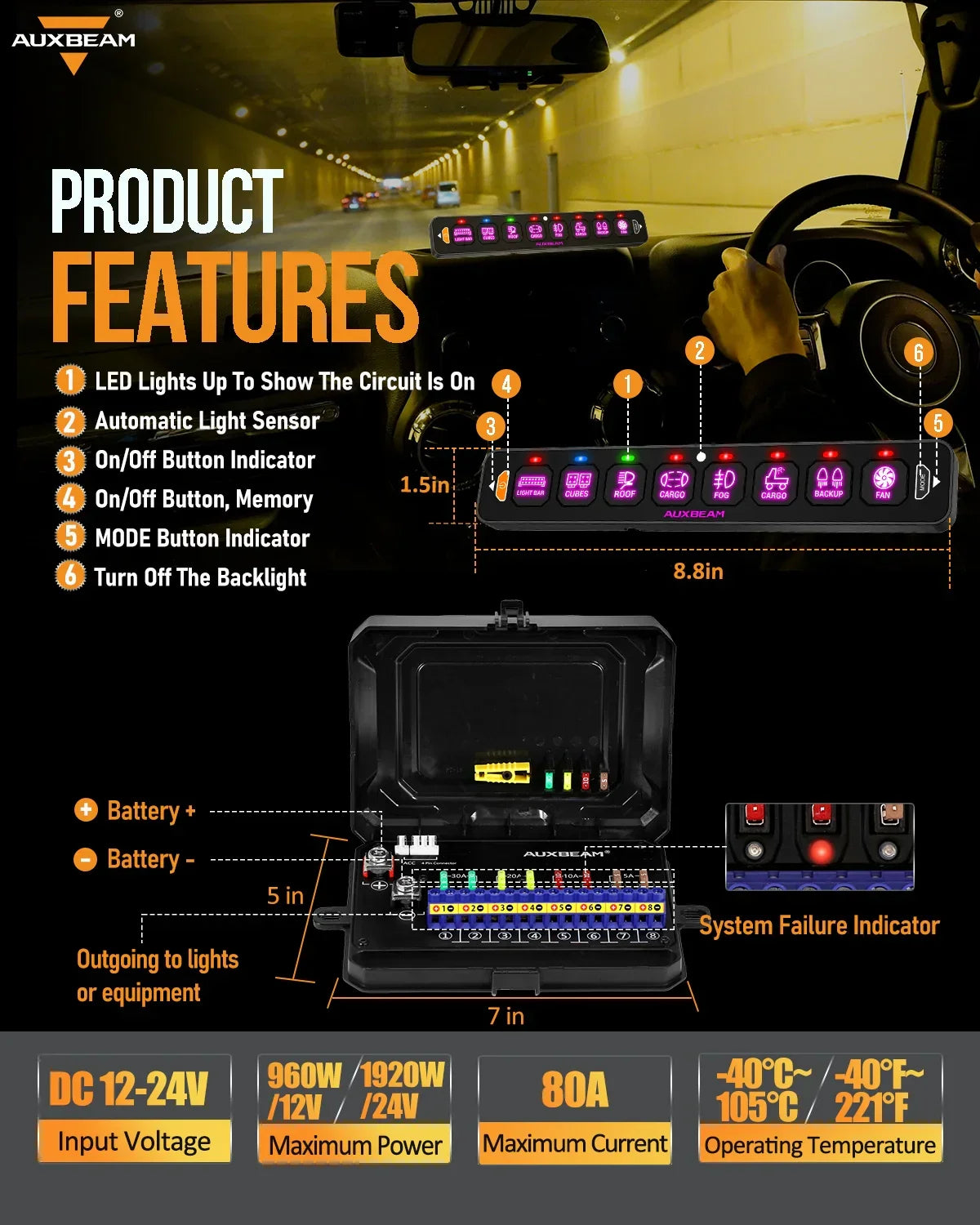

Specification:
Voltage Input: DC 12-24V
Max Current: 80A
Rated Voltage: 12V 20A / 24V 10A
Max Power: 960W/12V,1920W/24V
Waterproof Rating: IP65
Operating Temperature: -40°C ~105℃/-40℉~221℉
Features:
▶AS-R80 RGB Switch Panel

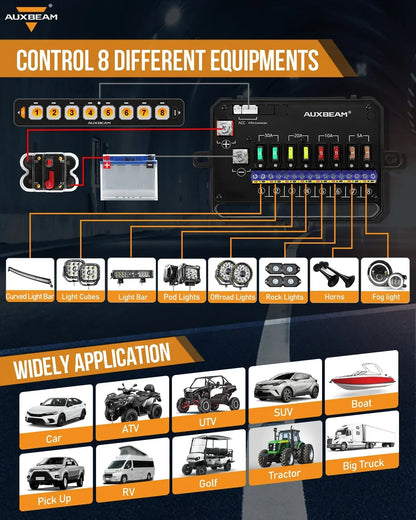

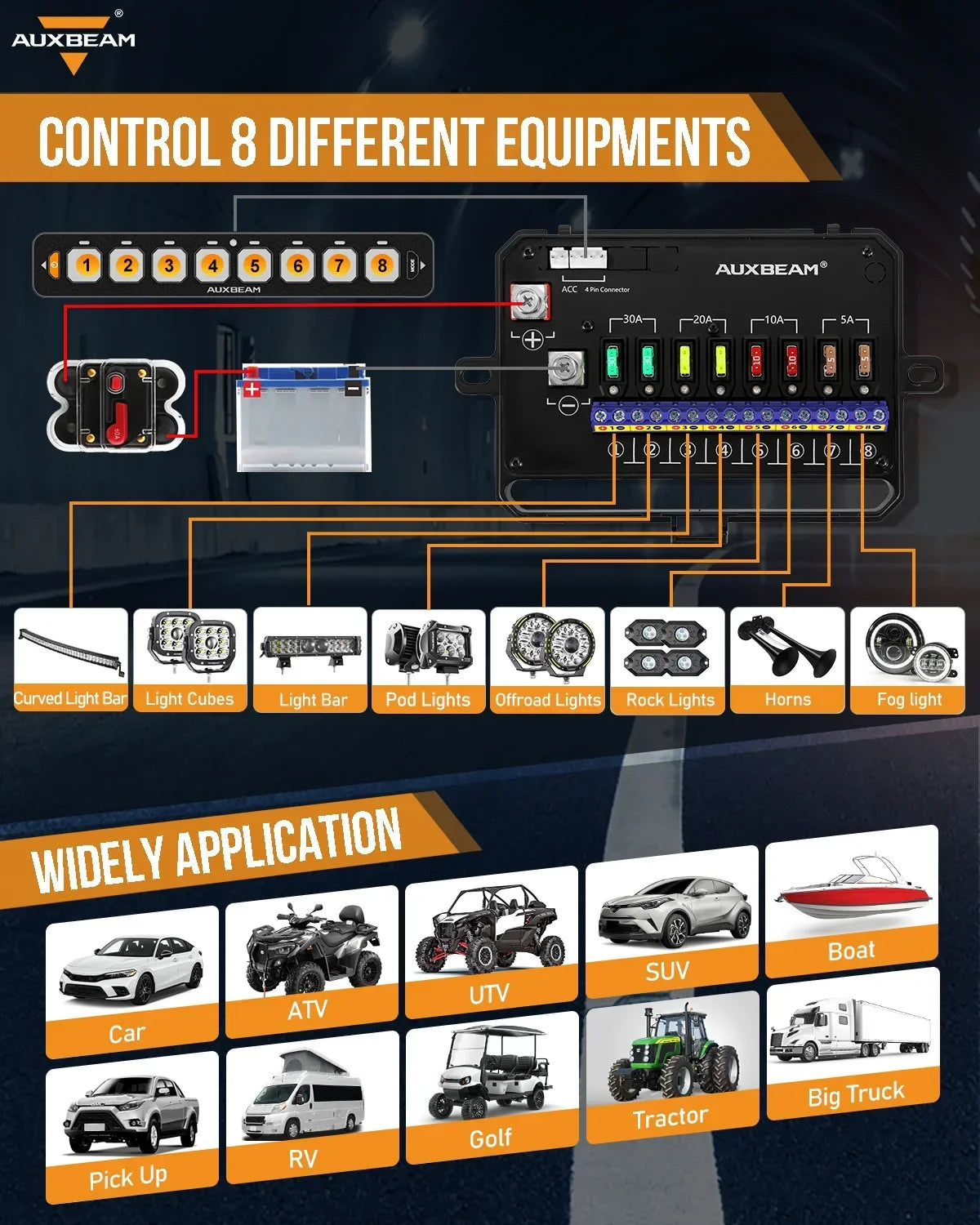

- 8-Gang one-sided outlet switch panel. It allows you to control up to 4 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
- 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
● RED-Toggle, Constant light mode (Great for things like fog lights or driving).
● BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.
● GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
- RGB backlight color. Adjust backlight color and brightness to match your vehicle.
- Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
- Customize your own switch panel with 60 universal stickers. Use the provided switch labels to indicate what’s connected to that switch.
- Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
- Waterproof IP65, high sensitivity, stability and strong anti-interference ability
- Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.

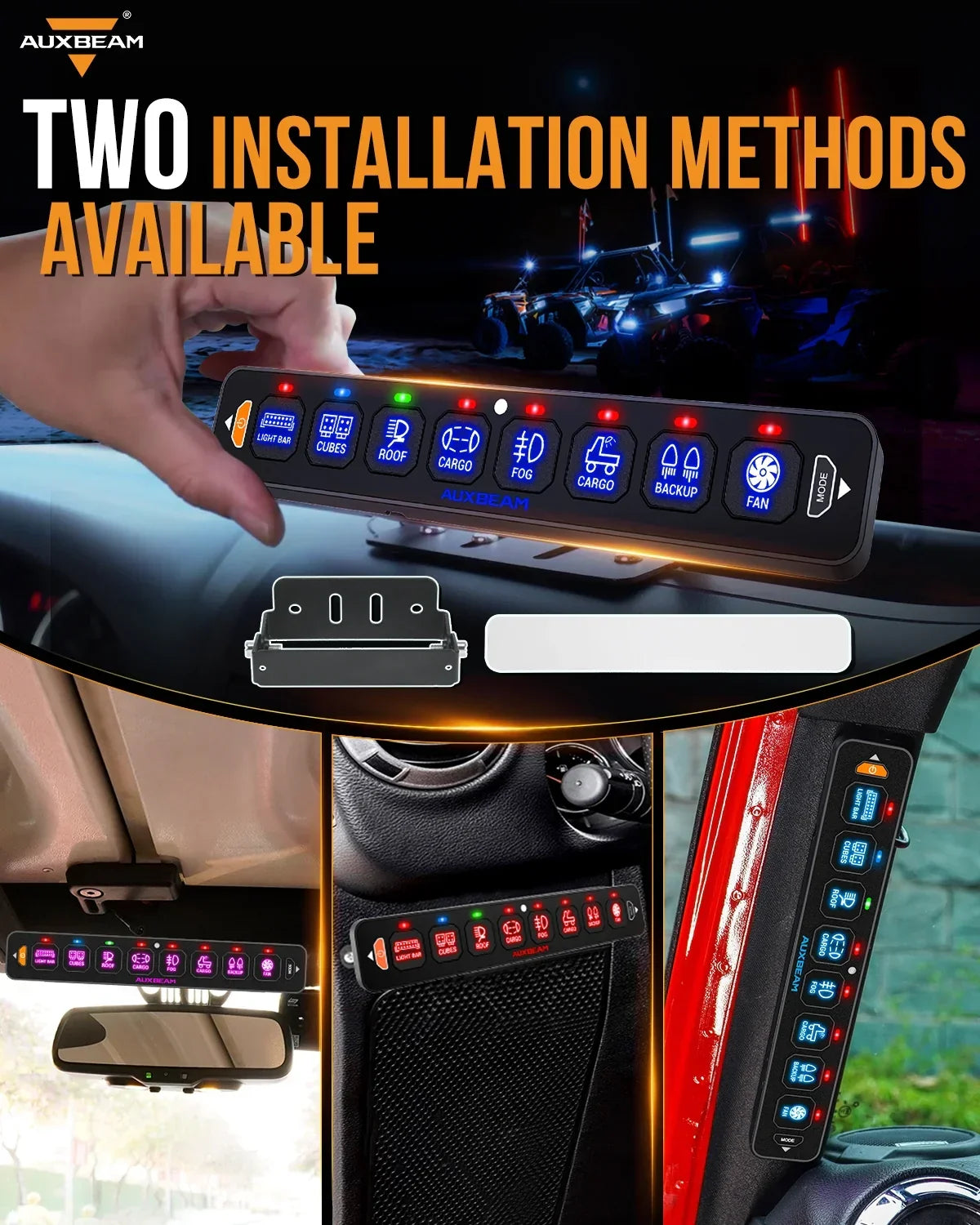

- With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.

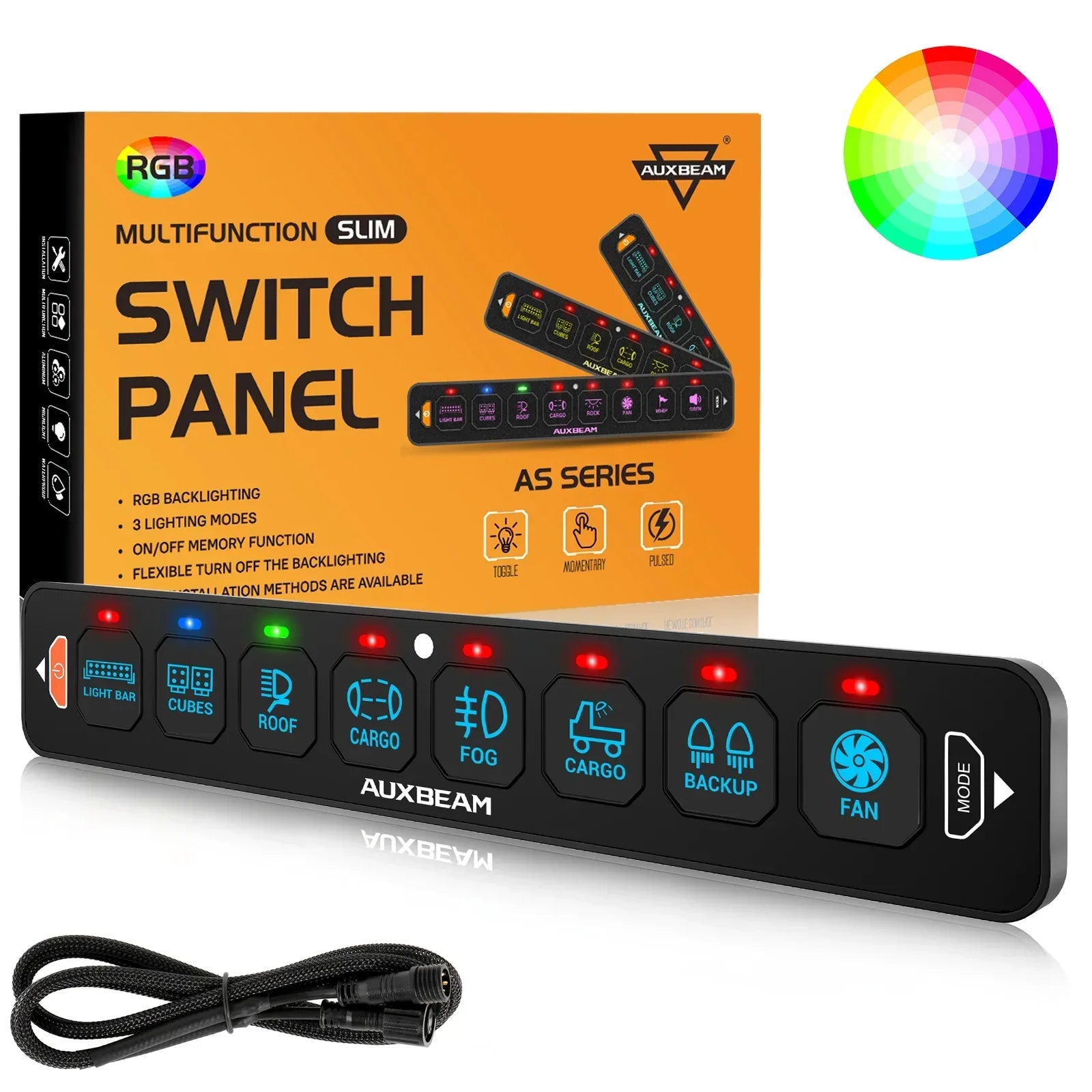

▶3.94FT Extension Cable
- There is a 4-pin aviation video cable, a cable for transmitting video and power.
- It is widely used in truck / Trailer/Bus / Motorhome / long-distance Parking Aid, and connected with vehicle monitoring CCTV system.
- Compatible products: professional CCTV / monitor 4-pin connector monitor, rearview camera, DVD player TV box.
- Power input DC 12V - DC 24V.
- Specially thick hard wire 100% provides super protection against EMI interference and RF interference such as automotive circuit interference.
